Development of an Application for LED Display Quality Diagnostics

Development of an Application for LED Display Quality Diagnostics

Industry
Marketing & Advertisement
Technologies
C/C++, Qt, Data Science, Image analysis

Customer

The Customer is one of the world’s leaders in LED display manufacturing and distribution that contributed to the image of Times Square as an advertising Mecca. The factors of the company’s success include a strong monitoring functionality of display condition that evolves along with increasing needs of advertisers.

Challenge

The Customer was looking to enhance real-time monitoring of the image quality on its LED displays with automated diagnostics via on-site USB/IP cameras. For this, the Customer required a user-friendly desktop application that would analyze information collected by cameras, detect and report problems with displaying advertisements.

Solution

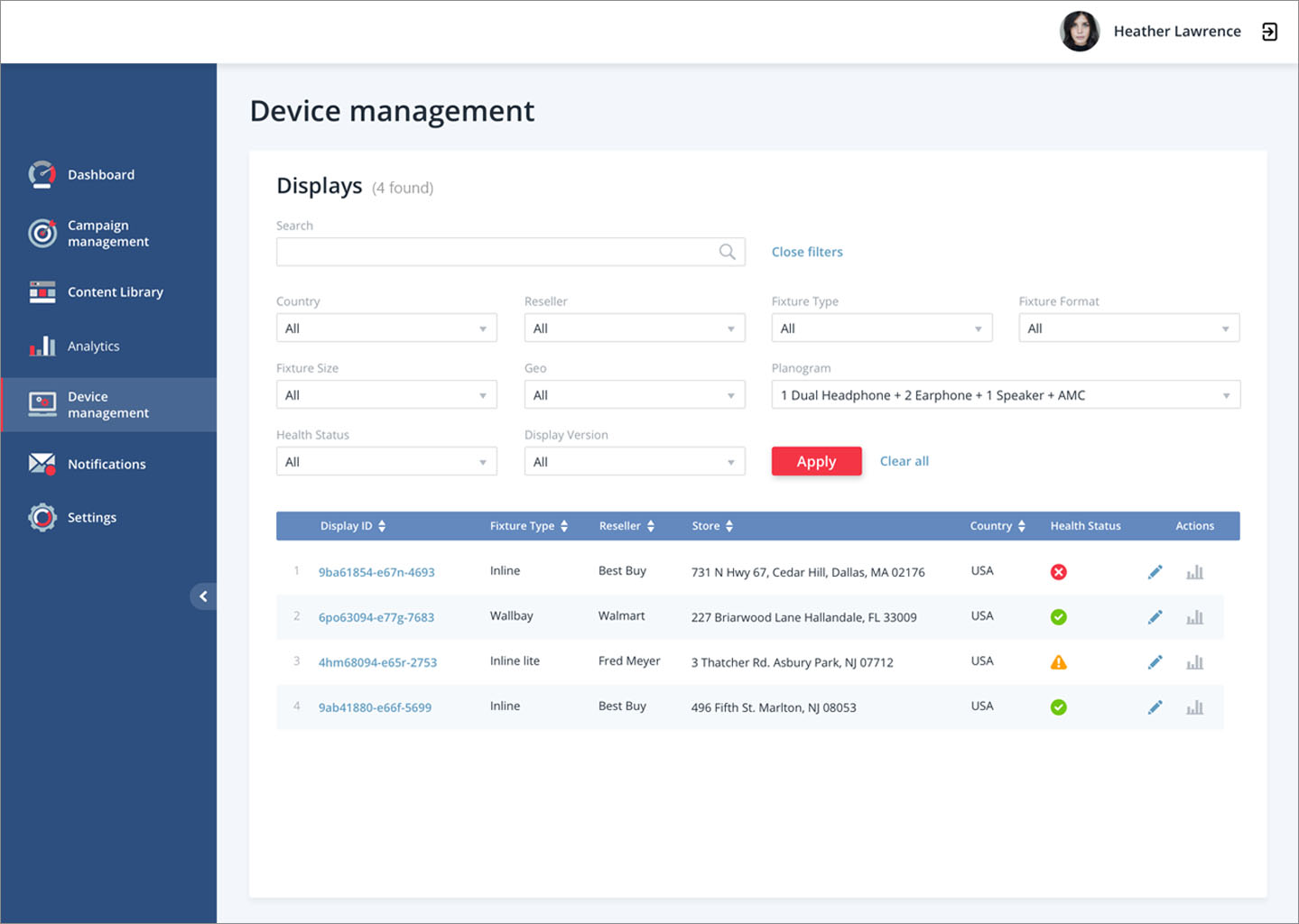

ScienceSoft’s custom software development team delivered a standalone application running on Windows and Linux. The application uses computer vision algorithms to detect and classify problems with displaying images as captured by the cameras, reporting the results to the web server through HTTP requests in real time.

Once launched, the application analyzes each panel that makes up a LED display for errors, comparing its condition with other neighboring panels to detect if:

  • a panel has frozen
  • a panel has switched off completely
  • a panel displays colors incorrectly because of under- or over-representation or the red, green, or blue channel

In each case, the analysis is based on the image processing algorithms that employ the OpenCV Library capabilities such as Gaussian blur, motion detection to identify frozen panels, mask application to detect the edges of a display and cut off irrelevant elements captured by the camera, as well as detection of colors that fail to correspond to the normal attributes.

The application checks for all the 3 error types at a time, and returns the pass/fail result based on a voting system to avoid false positives and false negatives in error reports. E.g., if a panel shows up as switched off but not frozen, it’s likely to be false positive and hence not reported.

Results

ScienceSoft’s team delivered the application that could reinforce the Customer’s capabilities of monitoring the image quality of their LED displays in real time with accurate image processing algorithms.

Technologies and Tools

C++, Qt framework, OpenCV.
